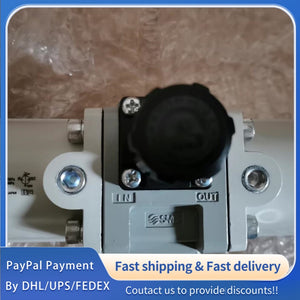

1 PCS new SMC Booster Valve VBA10A-02GLS #LYQ007
1 PCS new SMC Booster Valve VBA10A-02GLS #LYQ007
1 PCS new SMC Booster Valve VBA10A-02GLS #LYQ007
Original Factory Precision Parameters (Model: SMC Booster Valve VBA10A-02GLS)
|
Parameter Category
|
Parameter Name
|
VBA10A-02GLS Specification
|
|
Basic Information
|
Product Model
|
VBA10A-02GLS; SMC Genuine Original Booster Valve, 100% unused and unrefurbished genuine parts; Industrial-grade precision pneumatic component, specialized for pressure boosting, pressure stabilization and precision pressure control of industrial pneumatic systems
|
|
Manufacturer Standard
|
Manufactured by SMC Corporation (Japan); Complies with CE, UL, ISO 9001, ISO 14001, RoHS 2.0 Standards; Conforms to SMC Internal Technical and Quality Norms for Pneumatic Booster Valves; Anti-EMI/EMS design meets industrial high-precision pressure control requirements, in line with Japanese industrial equipment quality standards
|
|
|
Product Application
|
Industrial Pneumatic System Pressure Boosting, Precision Pressure Stabilization Control, Pneumatic Cylinder High-Pressure Drive, Electronic Component Precision Press-Fitting, Precision Machining Pneumatic Control, Automatic Assembly Line Pneumatic Auxiliary System, Food Packaging Pneumatic Equipment, Medical Device Pneumatic Control (Non-invasive); Suitable for scenarios requiring high output force in limited space or long-distance pneumatic control with pressure loss compensation.
|
|
|
Core Boosting & Pressure Control Parameters
|
Valve Type
|
Pneumatic Booster Valve (Single Acting); Adopts high-precision pressure sensing component and advanced boosting mechanism, supports real-time pressure detection and automatic boosting adjustment, no pressure lag, suitable for high-precision pressure control scenarios; No power supply required, achieving pressure boosting through factory compressed air supply alone.
|
|
Boosting Ratio
|
1:2 (Standard); Optional 1:3 / 1:4 Boosting Ratios; Stable boosting performance, consistent boosting ratio without attenuation during long-term operation, matching SMC original factory calibration standards; Capable of doubling factory standard air pressure, with a maximum optional boosting ratio of 1:4 (consistent with SMC VBA series specifications).
|
|
|
Pressure Control Precision
|
±0.01 MPa (at 25℃, Full Load); High pressure control precision, capable of distinguishing tiny pressure fluctuations, ensuring stable pressure output of the pneumatic system, meeting high-precision industrial application requirements; Helps reduce output pressure pulsation when matched with an air tank at the outlet.
|
|
|
Input Pressure Range
|
0.2 ~ 0.8 MPa (Gauge Pressure); Wide input pressure range, compatible with various industrial air compressor output pressures, flexible adaptation to different pneumatic system input requirements
|
|
|
Output Pressure Range
|
0.4 ~ 1.6 MPa (Gauge Pressure, Matching 1:2 Boosting Ratio); Output pressure can be adjusted continuously within the range, adapting to different pressure requirements of industrial pneumatic equipment; For applications with output pressure exceeding 1.0 MPa, the pressure specifications of pipe fittings, air pipes and valves should be confirmed in advance.
|
|
|
Pressure Response Time
|
≤10 ms; Fast pressure response, real-time feedback of pneumatic system pressure changes, automatic adjustment of boosting speed, no pressure overshoot or lag, meeting fast pressure control scenarios; Shortens the time required to inflate air tanks to the specified pressure.
|
|
|
Pressure Fluctuation
|
≤±0.005 MPa (Stable Working State); Low pressure fluctuation, ensuring stable operation of pneumatic equipment, avoiding product defects caused by pressure instability in precision processing scenarios
|
|
|
Pressure Sensing Type
|
Diaphragm Type Pressure Sensing; High sensitivity, strong anti-interference ability, able to accurately detect tiny pressure changes in the pneumatic system, ensuring reliable boosting and pressure control
|
|
|
Pneumatic & Structural Parameters
|
Port Size
|
Input/Output Port: Rc1/4 (BSPT); Drain Port: Rc1/8 (BSPT); Standard industrial port size, easy to connect with various pneumatic pipelines and fittings, compatible with SMC standard pneumatic accessories
|
|
Flow Capacity
|
≥150 L/min (ANR); Large flow capacity, ensuring sufficient air supply for high-power pneumatic equipment, no flow attenuation during long-term continuous operation
|
|
|
Sealing Performance
|
Pressure Leakage ≤0.001 MPa/min (at 1.6 MPa Output Pressure); Excellent sealing performance, no air leakage, ensuring stable pressure output and reducing energy consumption of the pneumatic system
|
|
|
Operating Medium
|
Dry Compressed Air (Dew Point ≤ -20℃); Oil-Free or Trace Oil-Injected Compressed Air (Oil Content ≤ 1 mg/m³); Compatible with common industrial compressed air standards, avoiding component wear caused by impure medium; It is recommended to install air filters and oil mist separators on the secondary side to ensure medium cleanliness.
|
|
|
Filtering Requirement
|
≥40 μm (Medium Filtration); It is recommended to match SMC Air Filter Regulator (AF Series) for better performance, ensuring the cleanliness of the input air and extending the service life of the valve
|
|
|
Valve Action Type
|
Single Acting (Normally Venting); Automatic venting when the input pressure is cut off, ensuring the safety of the pneumatic system and equipment, standard configuration for SMC VBA Series Booster Valves
|
|
|
Adjustment Method
|
Manual Knob Adjustment (Lockable); Precise pressure adjustment, lockable after setting to avoid accidental adjustment, easy to operate and debug on-site; The booster valve should be handled by clamping both ends, and the black convex handwheel in the middle should not be held to prevent damage.
|
|
|
Pressure Gauge Interface
|
Rc1/8 (BSPT); Compatible with SMC Standard Pressure Gauges (G Series); Convenient for on-site pressure observation and debugging, ensuring accurate pressure control
|
|
|
Protection & Safety Parameters
|
Over-Pressure Protection
|
Built-in Over-Pressure Relief Valve; Automatic Relief when Output Pressure Exceeds 1.8 MPa (Gauge Pressure); Protect internal components of the valve and pneumatic system equipment from over-pressure damage
|
|
Anti-Corrosion Protection
|
Internal Components: Anti-Corrosion Copper Alloy; External Housing: Anti-Corrosion Aluminum Alloy; Strong anti-corrosion performance, adapting to humid and corrosive industrial environments
|
|
|
ESD Protection
|
±15 kV (Contact), ±25 kV (Air); Effectively resist static electricity interference in industrial environment, avoiding damage to internal electronic components (if equipped) and ensuring stable operation
|
|
|
Waterproof & Dustproof Protection
|
Protection Class IP65; Effective waterproof and dustproof, suitable for installation in harsh industrial production sites, avoiding damage caused by dust and water droplets, adapting to complex industrial environments
|
|
|
Over-Temperature Protection
|
Automatic Pressure Reduction when Internal Temperature Exceeds 70℃; Automatic Recovery after Temperature Returns to Normal (≤60℃); Protect internal sealing components and pressure sensing components from overheating damage
|
|
|
Freeze Protection
|
Low-Temperature Resistant Sealing Material; Stable Operation at -10℃ Without Freezing; Avoid valve jamming caused by low-temperature freezing, ensuring stable operation in low-temperature industrial environments
|
|
|
Pressure Shock Resistance
|
Able to Withstand ±0.5 MPa Instantaneous Pressure Shock; No Damage to Internal Components, No Pressure Leakage; Adapt to instantaneous pressure changes in the pneumatic system, ensuring reliable operation
|
|
|
Environmental & Structural Parameters
|
Operating Temperature
|
-10℃ ~ 60℃; Stable operation in extreme temperature environments, adapt to various industrial working conditions such as high-temperature workshops and low-temperature warehouses, in line with Japanese industrial equipment environmental adaptability standards
|
|
Storage Temperature
|
-40℃ ~ 85℃; Stable storage performance, no performance degradation after long-term storage in harsh environments, convenient for transportation and inventory
|
|
|
Relative Humidity
|
5% ~ 95% (Non-Condensing); Resists humid industrial environments, no short circuit or malfunction caused by humidity, ensuring stable operation in coastal or wet areas
|
|
|
Installation Type
|
Panel Installation / Pipeline Installation (Switchable); Equipped with Standard Mounting Accessories; Easy to Install and Disassemble, compatible with standard industrial control cabinets and pneumatic pipelines; Compact design allows direct connection with air tanks to save space.
|
|
|
Dimensions (L×W×H)
|
85×65×100 mm (±0.1 mm); Compact structure, small installation space, easy to integrate with industrial pneumatic systems and on-site control equipment, suitable for limited installation space scenarios
|
|
|
Structure Material
|
Housing: High-Strength Aluminum Alloy (Anti-Corrosion & Heat Dissipating); Internal Components: Copper Alloy + High-Precision Sealing Material; Valve Core: Wear-Resistant Stainless Steel; High strength, wear-resistant, corrosion-resistant, good sealing performance, adapting to harsh industrial environment, long service life
|
|
|
Functional & Other Parameters
|
Operating Noise
|
≤55 dB (at 1.6 MPa Output Pressure, 1 m Distance); Low operating noise, adapting to noise-sensitive industrial environments such as electronic component production workshops
|
|
Service Life
|
≥100000 Operating Hours (Continuous Operation, Standard Working Conditions); High reliability, reducing maintenance frequency and cost of the pneumatic system, in line with SMC's high-quality product standards
|
|
|
Weight
|
≤350 g (Net Weight); Light weight, easy to install and carry, reducing the load of pneumatic pipeline and control cabinet
|
|
|
Vibration Resistance
|
10~500 Hz, 0.5 mm Amplitude; Resist mechanical vibration generated by industrial equipment operation, ensure stable pressure control performance, no pressure fluctuation or leakage
|
|
|
Maintenance Interval
|
≥12 Months (Standard Working Conditions); Low maintenance requirements, only regular cleaning and sealing inspection are needed, reducing maintenance costs and improving equipment utilization
|
