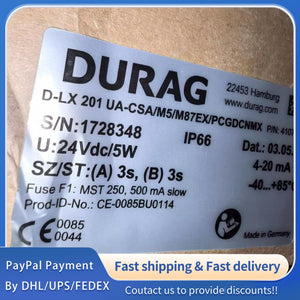

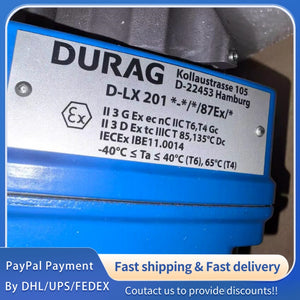

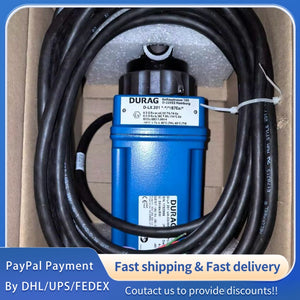

1 PCS new DURAG Flame Detector D-LX 201 UA-C1/M5/IM87EX/PCGDCNMIX #LYQ007
1 PCS new DURAG Flame Detector D-LX 201 UA-C1/M5/IM87EX/PCGDCNMIX #LYQ007
1 PCS new DURAG Flame Detector D-LX 201 UA-C1/M5/IM87EX/PCGDCNMIX #LYQ007
General Information (DURAG Original Factory Standard)
Model Overview: D-LX 201 UA-C1/M5/IM87EX/PCGDCNMIX, DURAG Flame Detector (Germany Original Factory), Genuine Original Factory Product, Factory Calibrated, No Manual Modification. It is specially designed for industrial flame detection scenarios, integrating high-sensitivity flame sensing, self-monitoring and fail-safe functions, suitable for monitoring gas, oil and coal flames in single burner view applications. The detector features high safety, high availability, excellent anti-interference performance and wide environmental adaptability, fully complying with DURAG original factory quality standards and industrial flame detection equipment technical specifications[1][2][3].
|
Parameter
|
Specification (D-LX 201 UA-C1/M5/IM87EX/PCGDCNMIX)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand
|
DURAG (Germany Original Factory)
|
-
|
Genuine DURAG original product, 100% authentic, produced in strict accordance with German original factory standards, compliant with global industrial flame detection equipment quality and safety standards[1][2][3].
|
|
Product Model
|
D-LX 201 UA-C1/M5/IM87EX/PCGDCNMIX
|
-
|
Original factory model, unchanged, factory calibrated before delivery, consistent with DURAG D-LX 201 series product standards and official datasheet[1][2][3].
|
|
Product Type
|
Industrial Flame Detector, Self-Monitoring Flame Monitor, Fail-Safe Flame Detector
|
-
|
Specialized for monitoring gas, oil and coal flames, designed for single burner view applications, with integrated self-monitoring and fail-safe functions to ensure operational safety[1][2].
|
|
Auxiliary Supply Voltage
|
DC 24 V (Rated); Voltage Tolerance: ±10%
|
V (DC)
|
Stable power supply performance, anti-voltage fluctuation, ensuring normal operation under harsh industrial power supply conditions, compatible with standard industrial DC power supply systems[1][2].
|
|
Power Consumption
|
≤ 5 W (Rated Operating Condition, DC 24 V Input)
|
W
|
Low power consumption, energy-saving and environmental protection, low heat generation, suitable for long-term continuous operation scenarios of industrial combustion equipment[2][3].
|
|
Spectral Ranges
|
UV (Ultraviolet), VIS (Visible), IR (Infrared) (Dual/Built-in Multi-Spectral Sensor)
|
-
|
Integrated multi-spectral sensor, high sensitivity to different types of flames (gas, oil, coal), strong anti-interference to ambient light and false signals[1][2][3].
|
|
Number of Spectral Ranges
|
1 (Single Range, User-Switchable Between UV/VIS/IR as Needed)
|
-
|
Single spectral range design with switchable function, adaptable to different flame types and application scenarios, simple and convenient to operate[1][2].
|
|
Flame Intensity Output
|
0/4 ~ 20 mA DC (Analog Output, Linear with Flame Intensity)
|
mA DC
|
Linear analog output of flame intensity, easy to connect with industrial PLC, DCS and other control systems, convenient for real-time monitoring of flame status[1][2][3].
|
|
Flame Relay Output
|
1x NO Contact; Rated Voltage: 230 V AC; Rated Current: 2 A
|
V AC, A
|
Flame relay output as changeover relay (SPDT, 1x NO, 1x NC), reliable switching performance, used for flame status feedback and control signal transmission[1][2].
|
|
Status Relay Output
|
1x NO Contact; Rated Voltage: 230 V AC; Rated Current: 2 A
|
V AC, A
|
Status relay output for detector self-monitoring status feedback, including power supply status, sensor status and fault status[1][2].
|
|
Flame Failure Detection Time (FFD T)
|
1 s, 3 s, 5 s (User-Settable, Stepless Adjustment)
|
s
|
Stepless adjustable flame failure detection time, adaptable to different combustion scenarios, ensuring timely and accurate detection of flame failure[1][2][3].
|
|
Operating Temperature Range
|
-40 ~ +75 °C (Ambient); Optional High-Temperature Version: -40 ~ +85 °C; No Condensation Allowed
|
℃
|
Wide temperature adaptation, suitable for extremely harsh industrial combustion environments, no need for additional heating or cooling accessories, no condensation allowed during operation[1][2].
|
|
Storage Temperature Range
|
-50 ~ +100 °C; No Condensation Allowed
|
℃
|
Suitable for long-term storage and transportation in extreme temperature environments, effectively protecting internal sensors and electronic components[2][3].
|
|
Relative Humidity
|
5 ~ 95% RH (Non-Condensing, 25℃ Ambient Temperature)
|
% RH
|
Strong humidity resistance, adaptable to different humidity environments in industrial workshops and combustion plants, ensuring stable operation of the detector[1][3].
|
|
Protection Level
|
IP65 (Aluminum Alloy Reinforced Enclosure); Protection Functions: Over-Voltage, Over-Current, Short-Circuit, Over-Temperature, Dust-Proof, Waterproof
|
-
|
High protection level, dust-proof and waterproof, multiple protection functions, effectively protecting the detector from damage in harsh industrial combustion environments[1][2][3].
|
|
Mounting Type
|
Flange Mounting; Optional: Screw Mounting, Bracket Mounting
|
-
|
Easy to install and disassemble, convenient for maintenance and replacement, suitable for various installation positions near industrial burners[2][3].
|
|
Dimensions (W×H×D)
|
Approx. 120 × 180 × 90 mm (Tolerance: ±0.5 mm; Including Housing, Connector & Sensor)
|
mm
|
Compact design, small volume, saving installation space, suitable for installation in narrow spaces near burners[1][3].
|
|
Weight
|
Approx. 1.8 kg (Including Housing, Connector, Sensor & Internal Components)
|
kg
|
Lightweight, easy to transport and install, reducing the load of the installation bracket[1][2].
|
|
Certifications
|
CE Certified, ATEX Certified, IECEx Certified, RoHS Certified, EN55022 (EMC), EN61000 (Anti-Interference)
|
-
|
Complies with international industrial standards, explosion-proof standards and environmental protection requirements, applicable to global industrial flame detection markets[1][2][3].
|
|
Service Life
|
≥ 8 Years (Continuous Operation, Normal Working Conditions); ≥ 50,000 Hours MTBF
|
Years, Hours
|
Long service life, low maintenance cost, suitable for long-term continuous operation in industrial combustion scenarios, reducing equipment replacement frequency[1][2][3].
|
|
Warranty Period
|
12 Months (Original Factory Warranty)
|
Months
|
Covers manufacturing defects, free repair or replacement provided by the original factory within the warranty period[2][3].
|
|
Application
|
Industrial Combustion Plants, Single Burner Systems, Optically Separated Burner Systems, Gas/Oil/Coal Fired Boilers, Industrial Furnaces, Thermal Power Plants
|
-
|
Widely used in various industrial combustion scenarios, especially suitable for single burner view applications, effectively monitoring gas, oil and coal flames to ensure combustion safety[1][2][3].
|
|
Special Features
|
Self-Monitoring, Fail-Safe, Multi-Spectral Sensing, High Sensitivity, High Protection Level, Wide Temperature Adaptation, Easy Installation
|
-
|
Adaptable to complex industrial combustion environments, stable performance, high safety and reliability, easy to operate and maintain, effectively ensuring the safe and efficient operation of combustion systems[1][2][3].
|
