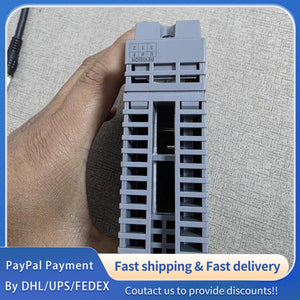

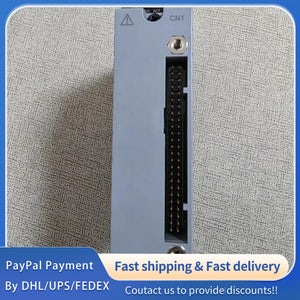

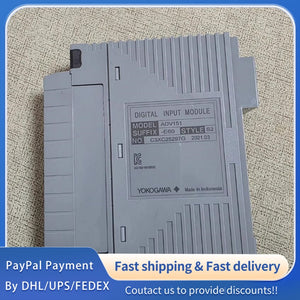

1 PCS used Yokogawa ADV151-E60 Digital Input Module #LYQ007
1 PCS used Yokogawa ADV151-E60 Digital Input Module #LYQ007
| Item | Specifications |
|---|---|
| Model | ADV151-E60 |
| Type | Digital Input Module (32-channel, 24 V DC, Isolated) |
| Suffix Code | -E: With SOE capture; 6: With status display; no explosion protection |
| Number of Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (at Rated Voltage) | 4.1 mA ±20% / channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Withstanding Voltage | Between input signal and system: 2 kV AC, 1 min; Between commons: 500 V AC, 1 min (common every 16 channels) |
| Functions | Status input (ON/OFF detection); Pushbutton input (edge counting); SOE input (event capture) |
| Input Response Time | ≤ 8 ms (status input) |
| Minimum ON Detection Time | 20 ms (pushbutton input) |
| Maximum ON/OFF Cycle | 25 Hz (pushbutton input) |
| Maximum Current Consumption | 500 mA (5 V DC) |
| Weight | Approx. 0.3 kg |
| External Connection | Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable |
| Operating Temperature | -10 to +55 °C |
| Storage Temperature | -25 to +85 °C |
| Dimensions (W×H×D) | 107.5 × 32.8 × 130 mm |
| Applicable Systems | ESB Bus Node Unit (ANB10S/D), Optical ESB Bus Node Unit (ANB11S/D), Field Control Unit (AFV30S/D, AFV40S/D) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
