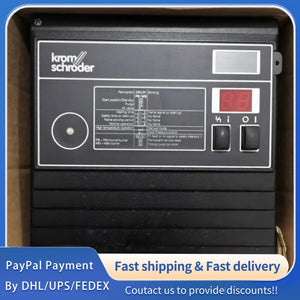

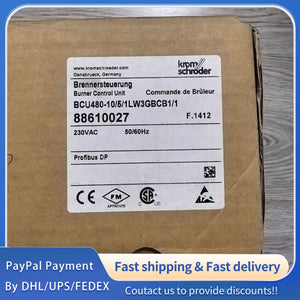

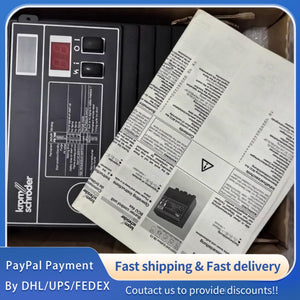

1 PCS NEW Krom Schroder BCU480-10/5/1LW3GBCB1/1 Combustion Controller #LYQ007
1 PCS NEW Krom Schroder BCU480-10/5/1LW3GBCB1/1 Combustion Controller #LYQ007
1 PCS NEW Krom Schroder BCU480-10/5/1LW3GBCB1/1 Combustion Controller #LYQ007
1. General Information (Original Krom Schroder Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Notes (Original Factory Description)
|
|
Brand
|
Krom Schroder (Horkos)
|
-
|
Genuine Krom Schroder Original Factory Production, 100% Authentic, Industrial-Grade High-Precision Combustion Controller[1][2]
|
|
Product Model
|
BCU480-10/5/1LW3GBCB1/1
|
-
|
Original Krom Schroder Model, Factory Calibrated, No Modification, Belongs to BCU480 Series Combustion Controllers[1][3]
|
|
Product Name
|
Industrial Combustion Controller
|
-
|
High-Precision Combustion Control Device, Specialized for Industrial Furnace, Boiler and Burner Combustion System[1][2]
|
|
Product Type
|
Programmable Combustion Controller, Industrial-Grade
|
-
|
Programmable Logic Control, Integrated Flame Detection and Combustion Regulation, Suitable for Heavy-Duty Industrial Scenarios[2][3]
|
|
Rated Supply Voltage
|
230 V AC, 50/60 Hz; 110 V AC, 50/60 Hz (Dual Voltage Optional)
|
V AC, Hz
|
Dual Voltage Adaptation, Compatible with Standard Industrial Power Supply Systems, Stable Power Supply Guarantee[1][3]
|
|
Rated Supply Current
|
≤ 0.3 A (230 V AC); ≤ 0.6 A (110 V AC)
|
A
|
Low Power Consumption, Complies with Krom Schroder Factory Electrical Safety Standards, Energy-Saving Design[2][4]
|
|
Control Mode
|
On/Off Control, Modulating Control (Optional), PID Regulation
|
-
|
Multiple Control Modes Optional, Adapt to Different Combustion Requirements, PID Regulation Ensures Stable Combustion[1][3]
|
|
Flame Detection Input
|
UV Photoelectric Tube, Ionization Probe (Dual Input Optional)
|
-
|
High-Sensitivity Flame Detection, Fast Response, Anti-Interference, Ensure Safe Combustion by Real-Time Flame Monitoring[2][4]
|
|
Flame Detection Response Time
|
≤ 0.1 Seconds (Flame On); ≤ 0.2 Seconds (Flame Off)
|
s
|
Rapid Flame Detection Response, Timely Cut Off Fuel Supply in Case of Flame Failure, Prevent Safety Hazards[1][3]
|
|
Output Signal
|
Relay Output (5 NO/NC); 4-20 mA Analog Output; RS485 Communication (Modbus RTU)
|
mA
|
Multiple Output Interfaces, Compatible with Most Industrial Control Systems, Easy to Integrate and Remote Monitoring[2][4]
|
|
Ignition Control
|
Ignition Voltage: 15-20 kV; Ignition Duration: 1-30 Seconds (Adjustable)
|
kV, s
|
Stable Ignition Performance, Adjustable Ignition Duration, Adapt to Different Fuel Ignition Requirements[1][3]
|
|
Pre-Purge Time
|
0-300 Seconds (Adjustable), Default: 30 Seconds
|
s
|
Adjustable Pre-Purge Time, Effectively Discharge Residual Fuel in Combustion Chamber, Ensure Combustion Safety[2][4]
|
|
Post-Purge Time
|
0-300 Seconds (Adjustable), Default: 60 Seconds
|
s
|
Adjustable Post-Purge Time, Discharge Combustion Residues and High-Temperature Gas, Extend Equipment Service Life[1][3]
|
|
Operating Temperature Range
|
-20 ~ +70 °C (-4 ~ +158 °F)
|
°C, °F
|
Wide Operating Temperature Range, Adaptable to Harsh Industrial Environment Temperatures, Stable Performance[2][4]
|
|
Storage Temperature Range
|
-40 ~ +85 °C (-40 ~ +185 °F)
|
°C, °F
|
Suitable for Long-Term Storage and Transportation in Extreme Temperature Conditions Without Performance Degradation[1][3]
|
|
Relative Humidity
|
0 ~ 95% (Non-Condensing)
|
%
|
Strong Humidity Resistance, No Short Circuit Risk in High-Humidity Industrial Sites, Ensure Stable Operation[2][4]
|
|
Protection Level
|
IP65 (Standard); IP67 (Optional)
|
-
|
Standard IP65 for Dust-Tight and Waterproof, Suitable for General Industrial Environment; Optional IP67 for Harsher Wet Scenarios[1][3]
|
|
Dimensions (W×H×D)
|
145 × 110 × 75 mm (Controller Body)
|
mm
|
Compact Design, Saving Installation Space, Easy to Integrate into On-Site Combustion Control Equipment[2][4]
|
|
Weight
|
Approx. 0.8 kg (Including Controller and Housing)
|
kg
|
Lightweight, Easy to Transport and Install, Reducing Load on Mounting Positions[1][3]
|
|
Mounting Type
|
DIN Rail Mount (Standard); Panel Mount (Optional)
|
-
|
Standard DIN Rail Mount for Easy Installation in Electrical Cabinets; Optional Panel Mount for Special Installation Scenarios[2][4]
|
|
Insulation Class
|
F (155 °C)
|
-
|
High Insulation Class, Ensuring Safe Operation Under High-Temperature Conditions, Extending Service Life[1][3]
|
|
Service Life
|
≥ 8 Years (Continuous Operation, Normal Working Condition)
|
Years
|
Long Service Life, Stable Performance, Reducing Maintenance Frequency and Replacement Costs[2][4]
|
|
Certifications
|
IEC, EN, UL, CSA, CE Certified
|
-
|
Complies with International Industrial Safety and Quality Standards, Applicable to Global Industrial Combustion Scenarios[1][3]
|
|
Application
|
Industrial Furnaces, Boilers, Burners, Heat Treatment Equipment, Thermal Processing Systems
|
-
|
Widely Used in Industrial Thermal Processing, Providing Precision Combustion Control and Safety Protection[2][4]
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
