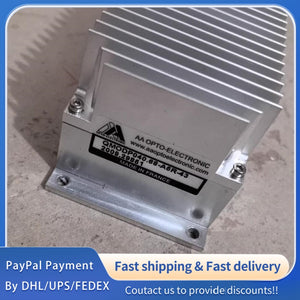

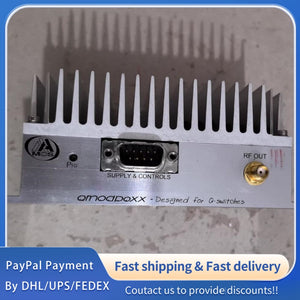

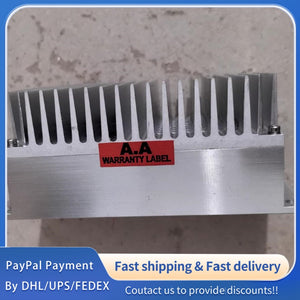

1 PCS USED AA-OPTO-ELECTROINC QMODP040.68-A5R-43 Q-Switch Driver #LYQ007
1 PCS USED AA-OPTO-ELECTROINC QMODP040.68-A5R-43 Q-Switch Driver #LYQ007
| Parameter Category | Parameter Name | QMODP040.68-A5R-43 Specification |
|---|---|---|
| Basic Information | Product Model | QMODP040.68-A5R-43 |
| Manufacturer | AA Opto-Electronic (AA-OPTO-ELECTROINC) | |
| Product Type | Acousto-Optic Q-Switch RF Driver | |
| Application | Laser Q-switching, short-pulse laser systems | |
| Core RF Parameters | Carrier Frequency | 40.68 MHz (Fixed) |
| Max RF Output Power | 40 W | |
| Output Impedance | 50 Ω | |
| VSWR | < 1.5:1 | |
| Rise/Fall Time | ≤ 35 ns (Typical) | |
| Extinction Ratio | ≥ 45 dB | |
| Frequency Stability | ±1 ppm/°C | |
| Frequency Accuracy | < 50 ppm | |
| Control & Signal | Digital Control (TTL) | TTL / 1 kΩ Pull-down (DPC 1 = RF ON) |
| Analog Control (FAC) | 0–5 V / 10 kΩ; 5 V = RF High Level | |
| Forward Power Monitor | Analog signal (Load: 1 kΩ) | |
| Return Power Monitor | Analog signal (Load: 1 kΩ) | |
| Thermal Alarm | TTL Signal (Pin 5) | |
| Electrical Parameters | Power Supply | 24 VDC ±10% |
| Operating Current | 2.3–2.9 A (Max) | |
| Thermal Security | Automatic shutoff at Tcase > 70°C | |
| Q-Switch Thermal Protection | SMC (Overheat protection) | |
| Mechanical & Interface | Input/Output Connectors | BNC, DB15, SMC |
| Operating Temperature | 0°C to +50°C | |
| Storage Temperature | -20°C to +70°C | |
| Protection Class | IP20 | |
| Certifications | Compliance | CE, RoHS |
