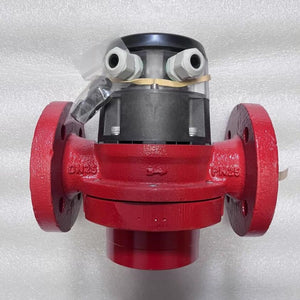

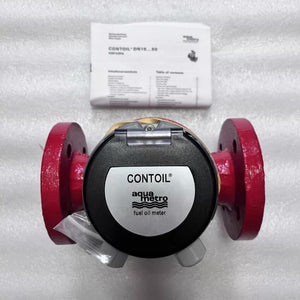

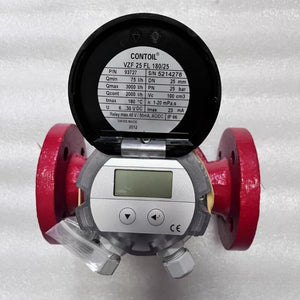

1 PCS new AQUAMETRO CONTOIL VZF 25 FL 180/25 Oil Flow Meter #LYQ007
1 PCS new AQUAMETRO CONTOIL VZF 25 FL 180/25 Oil Flow Meter #LYQ007
| Parameter | Specification |
|---|---|
| Model | CONTOIL VZF II 25 FL 180/25 |
| Product Type | Electronic rotary piston flow meter for mineral oil |
| Nominal Diameter (DN) | 25 mm |
| Connection | Flanged, DN 25 |
| Nominal Pressure (PN) | 25 bar |
| Max. Medium Temperature | 180 °C |
| Measuring Range | 75 ... 3,000 l/h |
| Max. Continuous Flow Rate | 2,000 l/h |
| Min. Flow Rate (Qmin) | 75 l/h |
| Starting Flow Rate (approx.) | 30 l/h |
| Max. Permissible Error | ±1% of actual value |
| Repeatability | ±0.2% |
| Installation Length | 190 mm |
| Installation Position | Horizontal or vertical |
| Measuring Chamber Volume | approx. 100 cm³ |
| Display | 8-digit LCD, 8 mm height |
| Display Functions | Total volume, resettable partial volume, flow rate, temperature |
| Totalizer Capacity | 100 Mio. |
| Output Signals | 1 analog (4...20 mA) & 2 digital (Pulse/Frequency/Logic) |
| Power Supply | 24 V DC; 6...30 V DC (via 4...20 mA) |
| Protection Class | IP66 / IP68 / IP69 |
| Ambient Temperature | -25 ... +70 °C |
| Weight (PN 25 Flanged) | 7.5 kg |
| Housing Material | Enameled steel (red RAL 3013) |
| Suitable Fluids | Mineral oil, fuel oil, diesel, lubricating oil, hydraulic oilAquametro Oil & Marine |
| Safety Filter Mesh Size | 0.40 mm |
| Dirt Filter Mesh Size | 0.25 mm |
