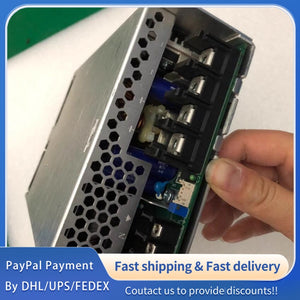

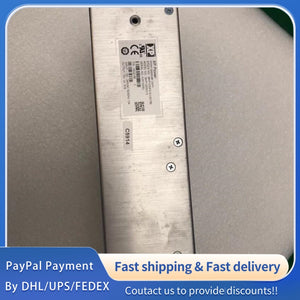

1 PCS used XP Power MHP1000PS15 #LYQ007
1 PCS used XP Power MHP1000PS15 #LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | XP Power |
| Part Number | MHP1000PS15 |
| Series | MHP1000 |
| Type | AC-DC Enclosed Power Supply, Medical |
| Input Voltage | 85–264 VAC, 47–63 Hz |
| Input Current | 12 A max (115 VAC), 6 A max (230 VAC) |
| Active PFC | Yes |
| Output 1 (Main) | 15 VDC, 67 A, 1010 W |
| Output 2 (Standby) | 5 VDC, 1 A, 5 W |
| Output Regulation | ±1% (main), ±5% (standby) |
| Ripple & Noise (main) | 150 mV p-p max |
| Efficiency | 85% typical |
| Isolation Voltage | 4 kVAC (input-output) |
| Safety Approvals | IEC60601-1, 2×MOPP, UL60601-1, EN60601-1 |
| EMC | EN55011 Class B, EN61000-4 |
| Dimensions | 242.6 × 149.8 × 61 mm (9.55 × 5.9 × 2.4 in) |
| Mounting | Chassis / Panel Mount |
| Cooling | Variable speed fan |
| Operating Temp | -20°C to +70°C (full power to +50°C) |
| Storage Temp | -40°C to +85°C |
| MTBF | >500,000 hours (25°C, full load) |
| Warranty | 3 yearsXP Power |
| Features | Remote On/Off, AC OK, Active Current Share, Remote SenseXP Power |
| RoHS | Compliant |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
