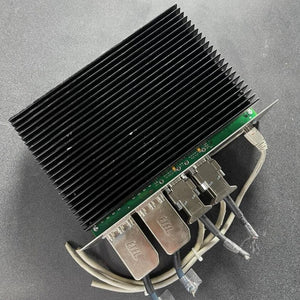

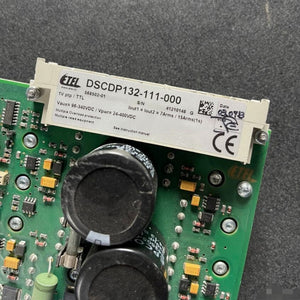

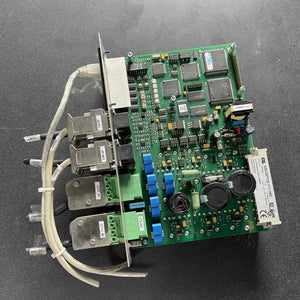

1 PCS used ETEL DSCDP132-111-000 Dual-Axis Position Controller #LYQ007
1 PCS used ETEL DSCDP132-111-000 Dual-Axis Position Controller #LYQ007
| Parameter | Value |
|---|---|
| Part Number | DSCDP132-111-000 |
| Product Type | Dual-axis digital position controller (DSCDP series) |
| Form Factor | 14F rack format (6U rack compatible) |
| Main Power Supply (DC Bus) | 120–340 VDC |
| Auxiliary Supply | 24 VDC, max. 1 A |
| Motor Output Current (per axis) | - Full load (Arms): 11 A (7.7 Arms)
|
| PWM / Ripple Frequency | PWM: 18 kHz
|
| Encoder Interfaces | TTL encoder, incremental analog (1 Vpp), absolute (EnDat 2.1) |
| Standard I/O | - Digital inputs: 4 opto-isolated per axis
|
| Optional I/O (DSO-HIO) | Add: 8 DI, 8 DO, 4 AI (14-bit), 4 AO (12-bit) |
| Communication | Turbo-ETEL-Bus (100 Mbps), CAN, PROFIBUS, SERCOS (optional) |
| Control Loop Rates | Position loop: 24 kHz
|
| Dimensions (L×W×H) | Approx. 260 × 190 × 70 mm |
| Weight | Approx. 2 kg |
| Operating Temp. | 0–45 °C (derate above 30 °C) |
| Software | ETEL Tools (setup/monitoring), DLL libraries (C/C++/VB) |
| Sequence Memory | 4096 lines per axis |
| Firmware Update | RS-232 / Turbo-ETEL-Bus |
