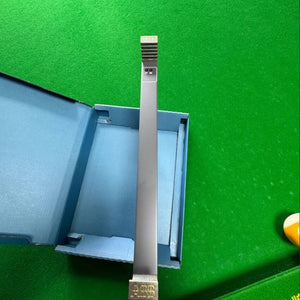

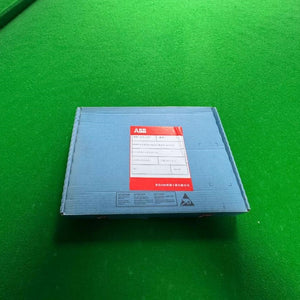

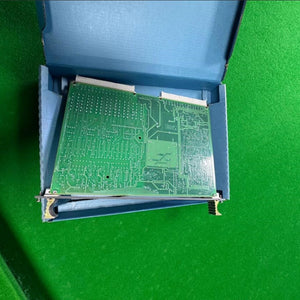

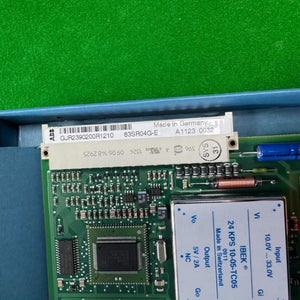

1 PCS NEW ABB 83SR04G‑E Module #LYQ007
1 PCS NEW ABB 83SR04G‑E Module #LYQ007
| Parameter | Value |
|---|---|
| Type Designation | 83SR04‑E/R1210 (83SR04G‑E) |
| Order Number | GJR2390200R1210 |
| Product Line | Advant OCS / Procontrol P14 |
| Function | Binary & Analog Control Module (4‑fold)ABB Group |
| Operating Voltage (Module) | 24 V DC (USA/USB) |
| Current Consumption | 145 mA + output currents |
| Power Dissipation | 3.5 W @ 24 V DC |
| Process Interface Supply (US11‑US41) | 48 V DC, ≤ 30 mA per channel |
| Input Signals (Ex1‑Ex3, STAx) | 48 V DC, 5 mA (OFF/CLOSED, ON/OPEN, Torque Monitor, Disturbance) |
| Outputs (Bx1/Bx2, BVx) | Relay outputs; short‑circuit proof, non‑interacting |
| Output Load | 360 Ω ≤ R_load ≤ 15 kΩ; ≤ 80 mA per channel |
| Relay Life | ≥ 20 million switching cycles |
| Max. Cable Length | 600 m (0.5 mm²) |
| CPU | 32‑bit; 5 μs instruction cycleABB Group |
| Memory | EPROM (OS/FBs), EEPROM (user program), RAM (runtime) |
| Max. Module Inputs | 287 |
| Max. Module Outputs | 223 |
| Max. Timers | 128 |
| Max. Parameters | 80 |
| Operating Modes | Binary Control (STR), Analog Control (REG), Signal Conditioning (MWV) |
| Cycle Time | Variable (STR); fixed 50/100/150/200/250 ms (REG); fixed 250 ms (MWV) |
| Connectors | X11: 48‑pin (station bus); X21: 32‑pin (process) |
| Dimensions | 6 TE, 1 division, 160 mm depth |
| Weight | Approx. 0.55 kg |
| Certifications | SIL3, CE, UL, IEC |
| EMC Immunity | ESD: 8 kV / 4 kV; EFT: 2 kV; Surge: 2 kV / 1 kV; RF: 10 V/m; Conducted: 10 V |
| Diagnostics | LED indicators (ST: general fault; SG: module fault); self‑diagnosis; CDS interface |
