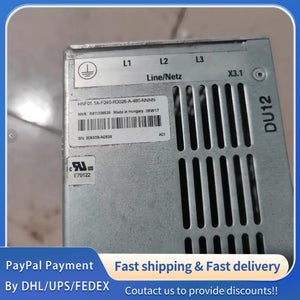

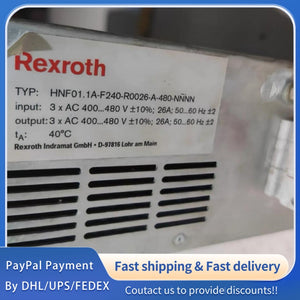

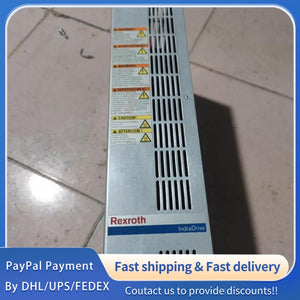

1 PCS new Rexroth IndraDrive HNF01.1A-F240-R0026-A-480-NNNN#LYQ007
1 PCS new Rexroth IndraDrive HNF01.1A-F240-R0026-A-480-NNNN#LYQ007
| Parameter Category | Parameter Name | Specification |
|---|---|---|
| Basic Identification | Product Model | HNF01.1A-F240-R0026-A-480-NNNN |
| Basic Identification | Material Number (MNR) | R911306539 |
| Basic Identification | Product Type | 3-Phase Mains EMC Filter (Line Filter) |
| Basic Identification | EMC Area (per DIN 61800-10) | Class A |
| Electrical Ratings | Rated Mains Voltage | 3AC 480 V ±10% |
| Electrical Ratings | Rated Frequency | 50/60 Hz |
| Electrical Ratings | Nominal Current (In) | 26 A |
| Electrical Ratings | Max. Operating Current | 26 A (Continuous) |
| Electrical Ratings | Power Dissipation (Typ.) | < 77 W |
| Electrical Ratings | Insulation Resistance | ≥ 100 MΩ (500 V DC, between live parts and housing) |
| Electrical Ratings | Withstand Voltage | 2 kV AC (1 min, between live parts and housing) |
| EMC Performance | EMC Compliance | EN 61800-3, EN 61000-6-2, DIN 61800-10 Class A |
| EMC Performance | Conducted Emission | Complies with EN 61000-6-4 |
| EMC Performance | Radiated Emission | Complies with EN 61000-6-4 |
| EMC Performance | Immunity | Complies with IEC 61000-4-2, 3, 4, 5, 6 |
| Mechanical Parameters | Dimensions (L × W × H) | 262 mm × 100 mm × 440 mm |
| Mechanical Parameters | Net Weight | 14 kg (Standard) / 17 kg (Optional) |
| Mechanical Parameters | Mounting Type | Wall Mount (Vertical) |
| Mechanical Parameters | Mounting Clearance | ≥ 50 mm (Top/Bottom), ≥ 20 mm (Sides) |
| Mechanical Parameters | Terminal Type | Screw Terminals (Cu ≥ 16 mm²) |
| Environmental Ratings | Operating Temperature | -10 °C to +55 °C |
| Environmental Ratings | Storage Temperature | -25 °C to +70 °C |
| Environmental Ratings | Operating Humidity | 0% to 95% RH (Non-condensing) |
| Environmental Ratings | Altitude | ≤ 1000 m (Derate 1% per 100 m above) |
| Environmental Ratings | Vibration Resistance | 5 Hz to 150 Hz, 3 g (IEC 60068-2-6) |
| Environmental Ratings | Shock Resistance | 50 g, 11 ms (IEC 60068-2-27) |
| Environmental Ratings | Protection Class (Housing) | IP20 |
| Application Compatibility | Target Drives | Rexroth IndraDrive HCS, HMV Power Supply Units |
| Application Compatibility | Motor Cable Length | Up to 100 m (Shielded) |
| Application Compatibility | Recommended Transformer | Isolated Transformer (Between Mains and Filter) |
| Safety Compliance | Safety Standards | IEC 60947-1, IEC 60947-5-1, UL 508 |
| Safety Compliance | RoHS | Compliant |
| Safety Compliance | CE Mark | Yes |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
