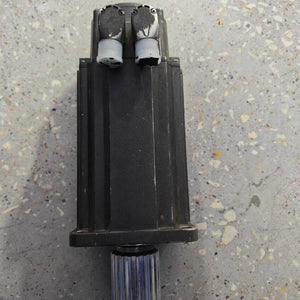

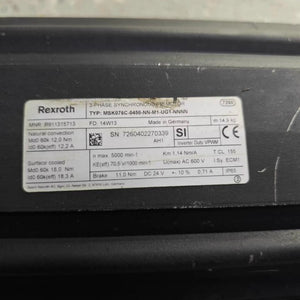

1 pc used Bosch Rexroth IndraDyn S MSK076C-0450-NN-M1-UG1-NNNN Order No.: R911315713#LYQ007
1 pc used Bosch Rexroth IndraDyn S MSK076C-0450-NN-M1-UG1-NNNN Order No.: R911315713#LYQ007
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| General Specifications | |||
| Motor Type | — | Synchronous Servomotor, IndraDyn S MSK | — |
| Frame Size | — | 076 | — |
| Motor Length | — | C | — |
| Winding Code | — | 0450 | — |
| Performance Data | |||
| Continuous Torque (standstill, 60 K) | M0_60 | 12.0 | Nm |
| Continuous Torque (standstill, 100 K) | M0_100 | 13.5 | Nm |
| Maximum (Peak) Torque | Mmax | 43.5 | Nm |
| Continuous Current (standstill, 60 K) | I0_60(eff) | 12.2 | A |
| Continuous Current (standstill, 100 K) | I0_100(eff) | 13.7 | A |
| Maximum (Peak) Current | Imax(eff) | 54.9 | A |
| Electrical Data | |||
| Torque Constant (20 °C) | KM_N | 1.14 | Nm/A |
| Voltage Constant (20 °C) | KEMK_100 | 70.5 | V/(min⁻¹) |
| Winding Resistance (phase-to-phase, 20 °C) | R12 | 0.71 | Ohm |
| Winding Inductance (phase-to-phase) | L12 | 4.70 | mH |
| Leakage Capacitance | Cab | 6.0 | nF |
| Number of Pole Pairs | p | 4 | — |
| Mechanical Data | |||
| Rotor Moment of Inertia (without brake) | Jrot | 0.00430 | kg·m² |
| Maximum Speed | nmax | 5000 | min⁻¹ |
| Shaft Type | — | Plain shaft (smooth), with sealing ring | — |
| Holding Brake | — | Without holding brake | — |
| Thermal Data | |||
| Cooling Method | — | Natural convection (surface cooling) | — |
| Thermal Time Constant | Tth | 60.0 | min |
| Environmental & Protection | |||
| Degree of Protection (IP) | — | IP65 (housing/shaft) | — |
| Insulation Class | — | F (155 °C) per EN 60034-1 | — |
| Ambient Temperature (Operation) | Tum | 0 ... 40 | °C |
| Sound Pressure Level (Lp) | — | < 75 | dB(A) |
| Encoder & Connector | |||
| Encoder Type | — | Hiperface® Multi-turn Absolute | — |
| Encoder Resolution | — | 128 signal periods/rev | — |
| Encoder Connector | — | Rotatable (240° swivel) | — |
| Standards & Approvals | — | CE, UL (compliant) | — |
