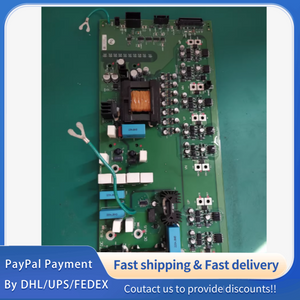

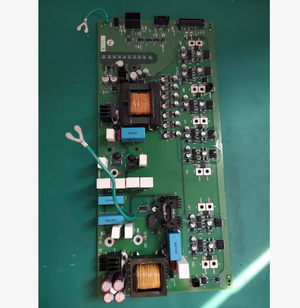

1PC used working PN-347152 Allen-Bradley internal service/sub-assembly part number primarily associated with PowerFlex 753/755 series variable frequency drives (VFDs)#QYM001 J1688
1PC used working PN-347152 Allen-Bradley internal service/sub-assembly part number primarily associated with PowerFlex 753/755 series variable frequency drives (VFDs)#QYM001 J1688
| Parameter Category | English Specification & Notes |
|---|---|
| Part Number Type | Non-catalog service/sub-assembly code; used for internal repair, replacement, and component tracking within Rockwell’s service system |
| Primary Board Function | IGBT gate signal generation and amplification, power module status monitoring, overcurrent/overvoltage protection logic integration for PF753/755 drives |
| Parent Product Compatibility | Exclusively paired with PowerFlex 753/755 series VFDs (480V/690V AC 3-phase models); no cross-series compatibility with PowerFlex 70/700 series |
| Public Spec Availability | No open-access electrical (gate drive voltage/current), thermal, or communication parameters. Exact specs are tied to the parent drive’s model number, power rating, and firmware version |
| Reference (PF755 Standard Gate Driver Board Example) | Gate Drive Voltage: ±15V DC; Max Gate Current per Channel: 6A; Operating Temperature: 0°C to 55°C (Non-condensing, RH 10%–90%); Certifications: UL 508C, CE, RoHS |

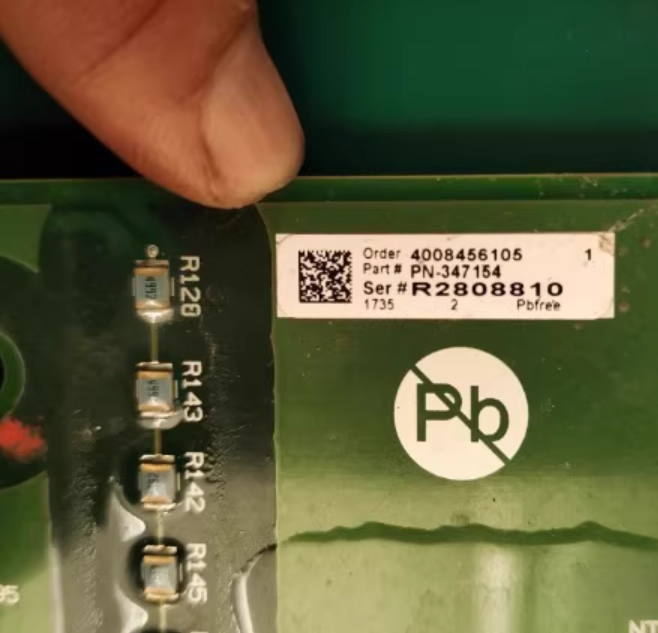

| Verification & Spec Retrieval Steps | 1. Inspect the board’s silkscreen for official AB catalog P/Ns (e.g., 22A-xxx, 2094-xxx) or revision codes.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
