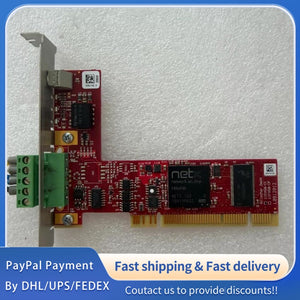

1 PCS used Hilscher CIFX50-CC pc card #LYQ007
1 PCS used Hilscher CIFX50-CC pc card #LYQ007
| Parameter | Value |
|---|---|
| Product Name | CIFX 50-CC |
| Part Number | 1250.740 |
| Description | PC Card cifX PCI CC‑Link Slave |
| Function | Communication interface between PCI bus and CC‑Link network |
| Communication Controller | netX 100 processor |
| Integrated Memory | 8 MB SDRAM; 4 MB serial Flash EPROM |
| Dual‑Port Memory | 64 KByte |
| System Interface | PCI (32‑bit, 33 MHz) |
| Data Access | Dual‑Port Memory (DPM) or DMA |
| Communication Standard | CC‑Link (Slave V2.0 / V1.1) |
| Physical Interface | RS‑485, optically isolated |
| Isolation Voltage | 1000 V DC (tested 1 minute) |
| Connector | COMBICON, male, 5‑pin |
| Supply Voltage | +3.3 V DC ±5% |
| Typical Current | 650 mA @ 3.3 V |
| Power Connector | Via PCI bus |
| Status Indicators | SYS (system), L RUN / L ERR (duo‑LED) |
| Slot ID | Rotary switch for card identification |
| Operating Temp | −20 °C to +60 °C (0.5 m/s airflow) |
| Storage Temp | −40 °C to +85 °C |
| Humidity | 10%–95% RH, non‑condensing |
| Max. Altitude | 2000 m |
| Environment | Pollution degree 2 (for UL compliance) |
| Dimensions (L×W×H) | 120 mm × 85.4 mm × 18.5 mm (HW rev. 2+) |
| Mounting | Standard PCI slot (3.3 V) |
| Certifications | RoHS, CE, UKCA, UL 508 (File E221530) |
| Configuration | SYCON.net or netX Configuration Tool |
