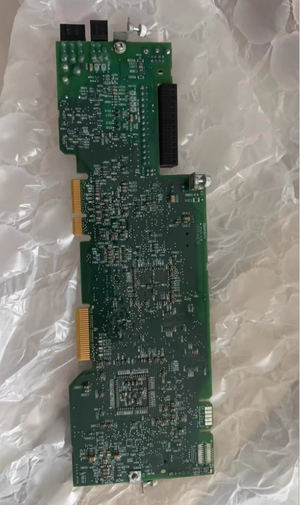

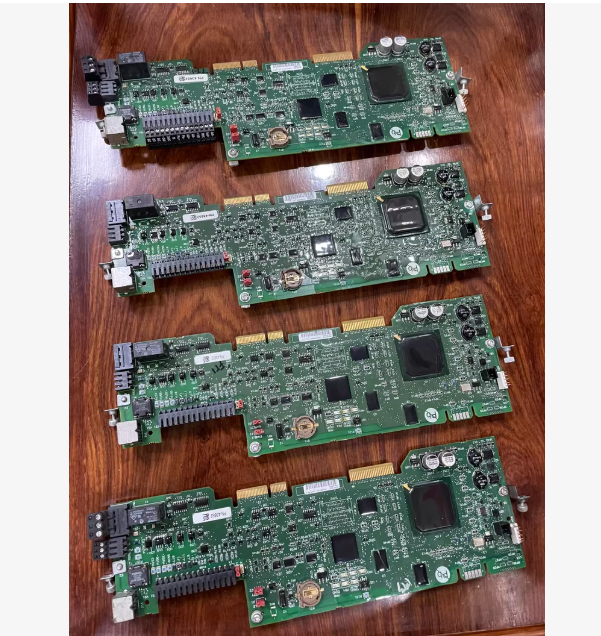

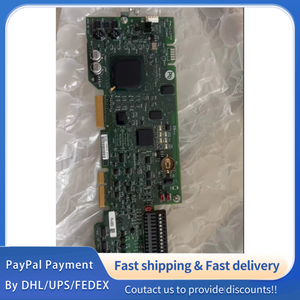

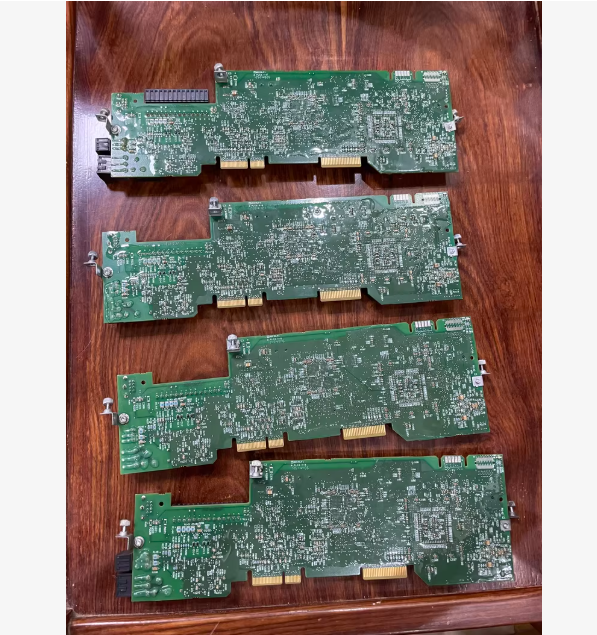

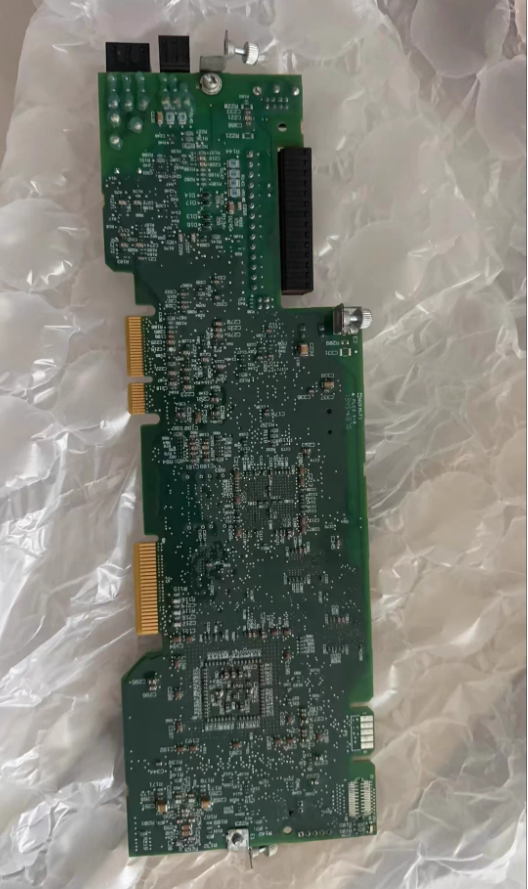

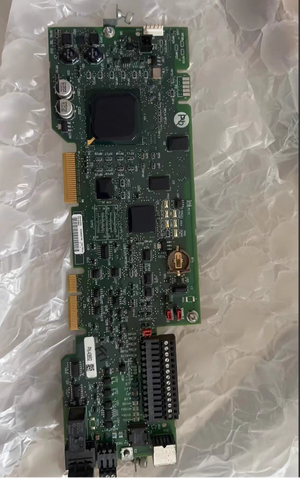

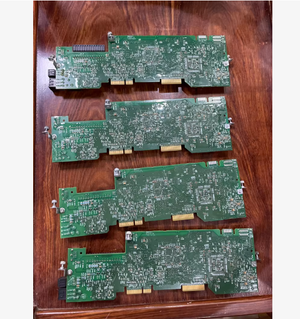

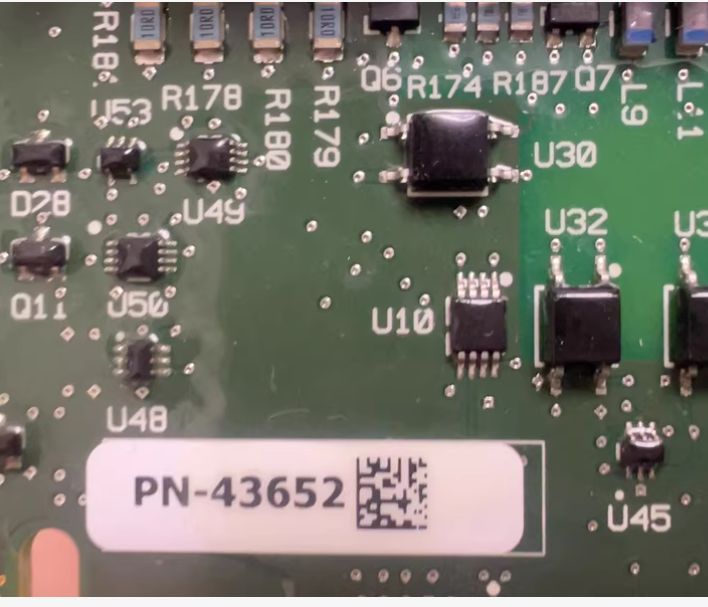

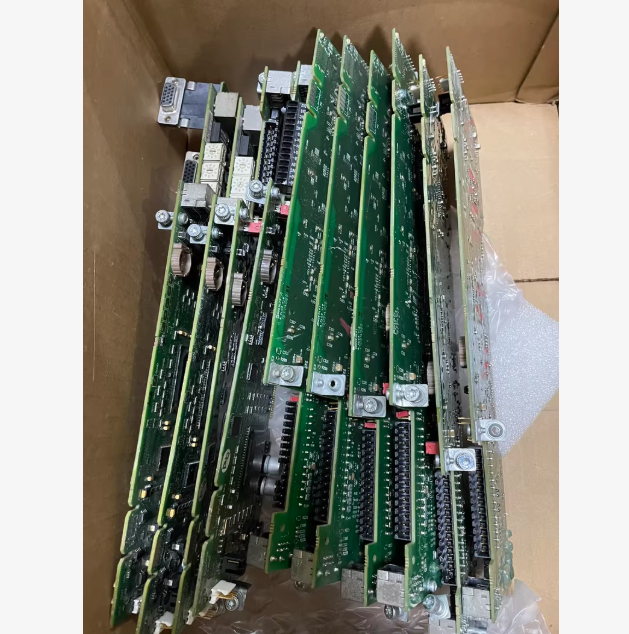

1PC used working PN-43652 753 MCB1-PF753 the main control board/panel control board of Allen-Bradley (AB) PowerFlex series frequency converters #QYM001 J1688
1PC used working PN-43652 753 MCB1-PF753 the main control board/panel control board of Allen-Bradley (AB) PowerFlex series frequency converters #QYM001 J1688
| Parameter Category | Core Details |
|---|---|
| Compatible Drives | PowerFlex 40/40P/70 series, common main models include 22B-D010N104, 22B-D630N104, corresponding to power range 0.75–630kW (subject to the main model) |
| Core Functions | Core control of frequency converter, IGBT drive signal management, parameter storage, fault diagnosis and protection |
| Power Supply | Control power supply: DC 24V; some models are compatible with AC 110V/220V (to be verified with the main model) |
| Communication Interfaces | Standard RS-485 (Modbus RTU); some models support DeviceNet/CANopen; EtherNet/IP is not available (for relatively early models) |
| Protection Functions | Overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, IGBT fault protection, short-circuit shutdown |
| Environment & Structure | Operating temperature: 0–55℃; PCB material: FR-4; metal shielding; protection class: IP20 (panel mounting) |
| Physical Specifications | Dimensions: approx. 150×100×30mm; weight: approx. 150g; PCB flame retardant rating: 94V-0 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
