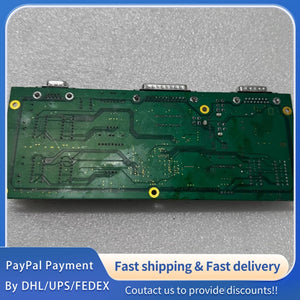

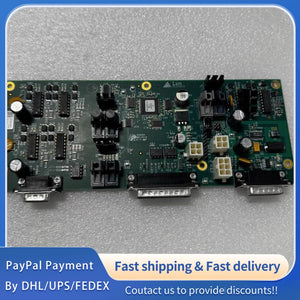

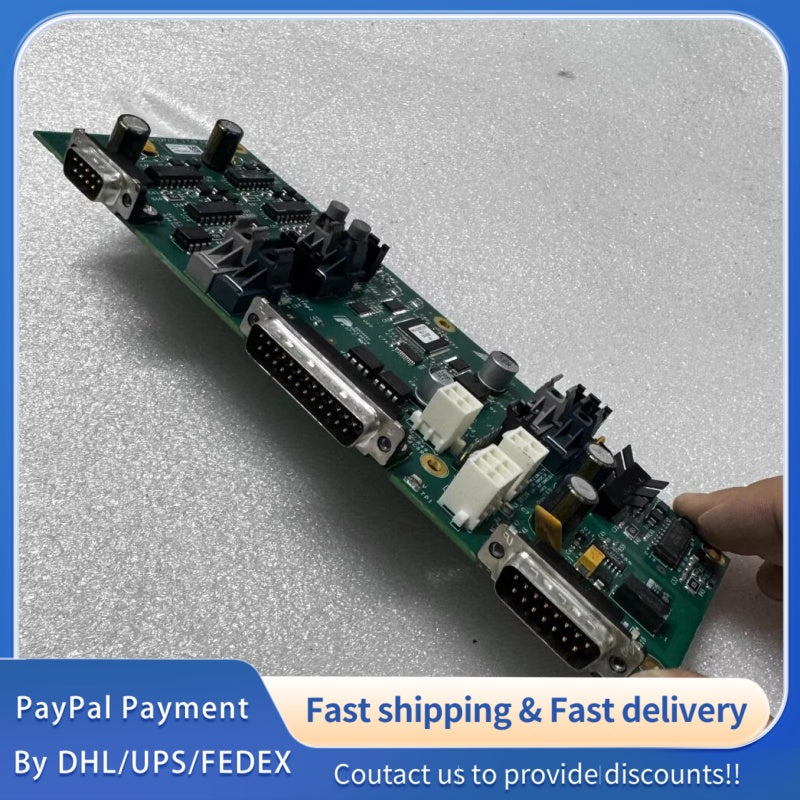

1 PCS Lam Match Interface 3 CAP FAN Control Board 810-033620-109 #LYQ007
1 PCS Lam Match Interface 3 CAP FAN Control Board 810-033620-109 #LYQ007
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Product Name
|
Lam Match Interface 3 CAP FAN Control Board
|
-
|
Genuine Lam Research Factory Part, 100% Authentic CAP FAN Control Unit
|
|
Product Model
|
810-033620-109
|
-
|
Lam Factory Standard Model, Non-Replacement, Factory-Calibrated
|
|
Product Type
|
Industrial Grade CAP FAN Interface Control Board
|
-
|
High Precision Fan Control, Stable Interface Matching, Anti-Interference
|
|
Origin
|
Lam Research Official Production Line
|
-
|
Strictly Complies with Lam Factory Precision & Safety Standards
|
|
Application
|
Lam Research Semiconductor Equipment CAP FAN System, Fan Speed & Interface Control
|
-
|
Suitable for Lam Match Interface 3 CAP FAN Precision Control Scenarios
|
|
Design Standard
|
Lam Research Factory Standard, ISO 9001, IEC 61010-1, IEC 60950-1
|
-
|
Meets Industrial CAP FAN Control Board Performance & Safety Requirements
|
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Notes
|
|
Operating Voltage
|
11.5
|
12
|
12.5
|
V DC
|
Stable Power Supply for Control Module & Fan Drive Circuit
|
|
Max Working Current
|
2.5
|
3.5
|
4.5
|
A
|
Rated Working Current, Full Load (Including Fan Control Operation)
|
|
Static Power Consumption
|
-
|
0.8
|
1.2
|
W
|
Standby Mode, Low Power Consumption, Energy-Saving Design
|
|
Insulation Resistance
|
≥150
|
-
|
-
|
MΩ
|
500V DC, High Insulation Performance, Protect Control Module Safety
|
|
Dielectric Strength
|
800
|
-
|
1200
|
V AC
|
1 Minute, No Breakdown, No Arcing, Ensure Stable Control
|
|
Fan Speed Control Range
|
300
|
1500
|
3000
|
RPM
|
Precision Adjustable, Adapt to Different Heat Dissipation Requirements
|
|
Control Precision
|
±0.1
|
-
|
-
|
%
|
High-Precision Fan Control, Stable Speed Output
|
|
Signal Response Time
|
≤10
|
-
|
-
|
ms
|
Fast Response, Reduce Speed Adjustment Delay
|
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
PCB Layers
|
6 Layers
|
-
|
High-Density Wiring, Reduce Signal Interference
|
|
Copper Thickness
|
1.5
|
oz
|
Good Conductivity, Adapt to Fan Drive Requirements
|
|
Board Thickness
|
1.6
|
mm
|
High Mechanical Strength, Adapt to Equipment Vibration
|
|
Interface Type
|
3P Pin Header, RS-485, Digital I/O, Fan Control Interface
|
-
|
Multi-Interface Design, Match Lam Interface 3 Standard
|
|
Connector Type
|
Industrial Grade High-Precision Connector
|
-
|
Anti-Vibration, Anti-Loose, Long Service Life
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
