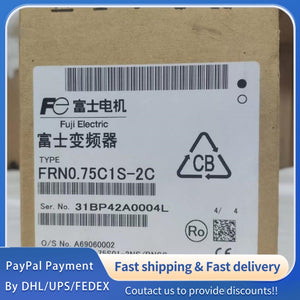

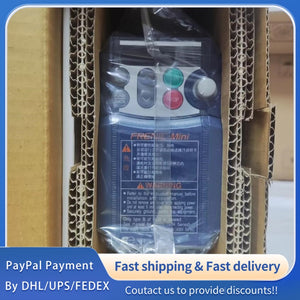

1 PCS NEW Fuji Electric FRENIC-Mini C1S Series FRN0.75C1S-2C #LYQ007
1 PCS NEW Fuji Electric FRENIC-Mini C1S Series FRN0.75C1S-2C #LYQ007
| Parameter | Specification |
|---|---|
| Model | FRN0.75C1S-2C |
| Applicable Motor Rating | 0.75 kW (1 HP) |
| Rated Output Capacity | 1.9 kVA |
| Input Power | Three-phase, 200–240 V, 50/60 Hz |
| Output Voltage | Three-phase, 0 to input voltage (max 240 V) |
| Rated Output Current | 5.0 A (4.2 A at >4 kHz carrier freq. / ≥40°C) |
| Overload Capability | 150% of rated current for 1 min; 200% for 0.5 s |
| Output Frequency Range | 0.1–400 Hz |
| Control Method | V/F control with slip compensation |
| Carrier Frequency | 0.7–15 kHz (selectable) |
| DC Injection Braking | Starting freq.: 0.0–60.0 Hz; Braking time: 0.0–30.0 s; Level: 0–100% rated current |
| Protection Features | Overcurrent, overvoltage, undervoltage, motor overload (electronic thermal), inverter overheat, input/output phase loss, short circuit, ground fault, CPU error, memory error |
| Cooling Method | Natural convection (self-cooling) |
| Enclosure | IP20 (IEC 60529) |
| Ambient Temperature | -10°C to +40°C (14°F to 104°F) |
| Weight | Approx. 1.5 kg (3.3 lbs) |
| Dimensions (W×H×D) | 90 × 120 × 70 mm (3.54 × 4.72 × 2.76 in) |
