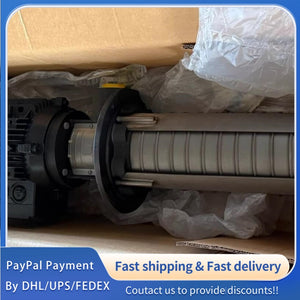

1 PCS NEW Grundfos MTR10-14/12 A-W-A-HUUV (60Hz) pump #LYQ007
1 PCS NEW Grundfos MTR10-14/12 A-W-A-HUUV (60Hz) pump #LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | Grundfos |
| Model | MTR10-14/12 A-W-A-HUUV |
| Part Number | 98720245 |
| Pump Type | Vertical multistage centrifugal immersible pump |
| Rated Speed | 3525 rpm |
| Rated Flow | 53.3 US gpm |
| Rated Head | 484.9 ft |
| Stages (Chambers) | 14 |
| Impellers | 12 |
| Shaft Seal Code | HUUV |
| Pump Version | A |
| Connection Type | G internal thread |
| Outlet Port Size | 2 inch |
| Immersion Depth | 20 in |
| Max Operating Pressure | 362.59 psi (363 psi @ 194 °F) |
| Liquid Temp Range | 14–194 °F |
| Pumped Liquid | Water |
| Material (Impeller) | Stainless steel EN 1.4301 (AISI 304) |
| Material (Pump Head) | Cast iron EN 1561 EN-GJL-200 |
| Motor Type | 132EA |
| Rated Power (P2) | 10 HP |
| Frequency | 60 Hz |
| Voltage | 3 x 220–277D/380–480Y V |
| Rated Current | 24.6–20.8 / 14.2–12.0 A |
| Power Factor (Cos φ) | 0.90–0.82 |
| Efficiency Class | NEMA Premium / IE3 (60Hz) |
| Enclosure Class | IP55 (Dust/Jetting) |
| Insulation Class | F |
| Motor Protection | PTC |
| Net Weight | 164 lb |
| Gross Weight | 210 lb |
| Approvals | CE, EAC, UKCA |
| Curve Tolerance | ISO 9906:2012 3B |
