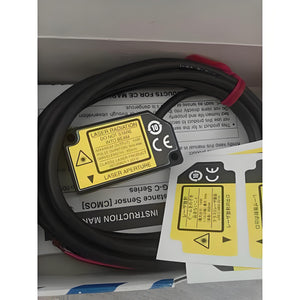

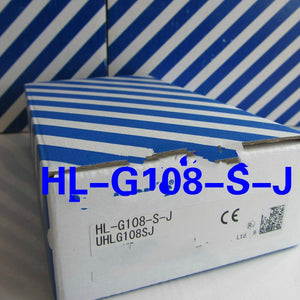

Model: HL-G108-S-J

Applicable standards: CE mark (EMC directive, RoHS directive), UKCA mark (EMC standard, RoHS standard)

Type: multi-functional

Measurement center distance: 85mm

Measurement range: ±20mm

Resolution: 2.5μm

Straightness: ± 0.1% F.S.

Temperature characteristics: ± 0.08% F.S./℃

Light source: Red semiconductor Laser (Class 2, JIS/IEC, Class II, FDA Laser Notice No.50), maximum output 1mW, beam peak length 655nm

Beam diameter: 0.75 × 1.25mm (value at measuring center distance)

Light receiving element: CMOS image sensor

Power supply voltage: 24V DC±10% (including pulse 0.5V (P-P))

Consumption current: Below 100mA Sampling period: 200μs, 500μs, 1ms, 2ms

Material: Body shell: PBT, front cover: propylene, cable: PVC

Cable: Rubber insulated cable with 14-core connector 0.5m, cable extension with optional cable (sold separately), the full length can be extended to 20m

Weight: Body weight: about 70g (excluding cable), about 110g (including cable), packaging weight: about 160g

Accessories: Laser warning label: 1 set
