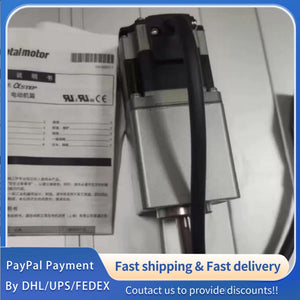

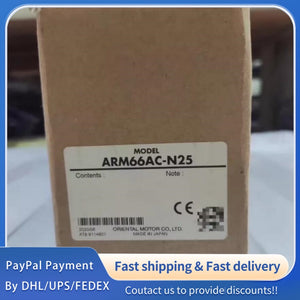

1 PCS NEW Oriental Motor ARM66AC-N25 #LYQ007
1 PCS NEW Oriental Motor ARM66AC-N25 #LYQ007
| Parameter | Value |
|---|---|
| Model | ARM66AC-N25 |
| Brand | Oriental Motor (αSTEP AR Series) |
| Control Type | Closed-loop stepper motor |
| Frame Size | 60 mm (2.36 in) |
| Gear Type | Planetary gear |
| Gear Ratio | 25:1 |
| Backlash | 3 arcmin (0.05°) |
| Holding Torque | 1120 oz-in (8 N·m) |
| Step Angle | 0.36° (1000 steps/rev) |
| Encoder Resolution | 1000 p/rev |
| Supply Voltage | AC 170–253 V (200–240 V single‑phase) |
| Rotor Inertia | 380×10⁻⁷ kg·m² (2.1 oz‑in²) |
| Stop Position Accuracy | ±4 arcmin (±0.067°) |
| Shaft Runout | 0.05 mm T.I.R. |
| Concentricity | 0.075 mm T.I.R. |
| Perpendicularity | 0.075 mm T.I.R. |
| Degree of Protection | IP65 (excluding mounting surface & connector) |
| Insulation Class | Class B (130°C) |
| Ambient Temperature | −10 to +50°C (non‑freezing) |
| Ambient Humidity | ≤85% RH (non‑condensing) |
| Shaft | Single‑shaft, no brake |
| Driver | Sold separately (ARD‑C recommended) |
| Certifications | UL, CSA, CE, RoHS |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
