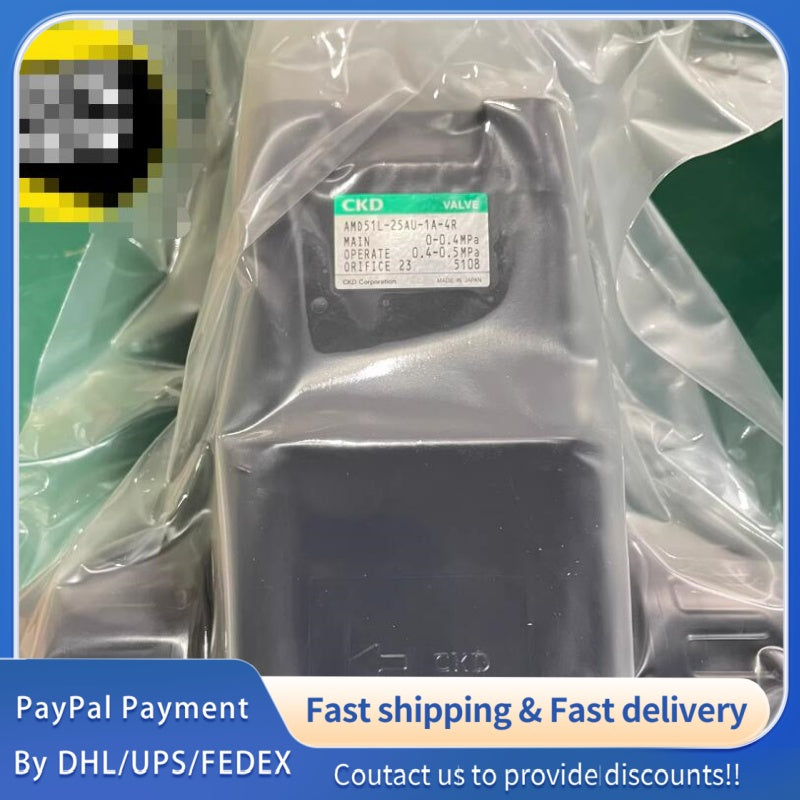

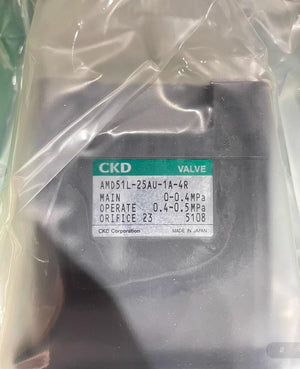

1 PCS NEW CKD AMD51L-25AU-1A-4R Chemical Liquid Valve #LYQ007
1 PCS NEW CKD AMD51L-25AU-1A-4R Chemical Liquid Valve #LYQ007
| Item | Specification |
|---|---|
| Model | AMD51L-25AU-1A-4R |
| Product Type | Air-operated 2-port chemical liquid valve (Normally Closed, NC) |
| Connection | Integrated PVC union fitting, 25A (nominal diameter) |
| Orifice Diameter | φ23 mm |
| Cv Value | 10 |
| Operating Fluid | Pure water, air, nitrogen gas |
| Fluid Temperature | 5–40 °C |
| Operating Pressure (In→Out) | 0–0.4 MPa |
| Back Pressure | 0–0.2 MPa |
| Proof Pressure | 0.8 MPa |
| Seat Leakage | 0 cm³/min (water test) |
| Ambient Temperature | 0–40 °C |
| Operating Frequency | ≤6 cycles/min |
| Mounting | Any orientation |
| Actuator Material | PVDF (chemical resistant)CKD株式会社 |
| Body Material | PVC |
| Diaphragm | PTFE |
| Seal | FKM/EPDM |
| Options | With flow adjustment (1A), 4R port configuration |
