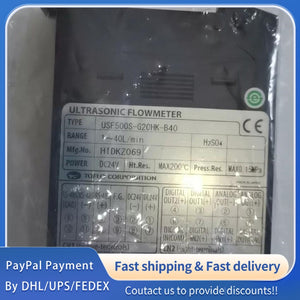

1 PCS new TOFLO Ultrasonic Flow Meter USF500S-G20HK-B40 #LYQ007
1 PCS new TOFLO Ultrasonic Flow Meter USF500S-G20HK-B40 #LYQ007
| Item | Specification |
|---|---|
| Model | USF500S-G20HK-B40 |
| Measuring Principle | Ultrasonic Transit-Time Difference Method |
| Fluid Compatibility | DI water, Slurry, Chemicals (IPA, H₂O₂, H₂SO₄, H₃PO₄, HF, HCl, O₃, NH₃, etc.) |
| Flow Measuring Range | 1~50 L/min |
| Minimum Flow Rate | 0.01 L/min |
| Connection Size | 3/4" Tube End (φ19.0×15.8) |
| Flow Accuracy | ±1% of R.D.; ±0.1% of F.S. (≤10% of flow range) |
| Measurement Channels | 1 Channel |
| Data Update Cycle | 10 msec |
| Max. Operating Pressure | 0.5 MPa(G) (≤90°C); 0.2 MPa(G) (90~200°C) |
| Max. Fluid Temperature | Standard: 90°C; High Temp: 200°C |
| Ambient Temperature | 0~80°C (Detector); 0~50°C (Electronics) |
| Analog Output | DC 4-20 mA (12-bit resolution, 600Ω max load) |
| Digital Output | NPN Open Collector (2 ports; selectable: frequency/pulse/comparator/error) |
| Communication | RS-485 (Modbus-RTU / USF Protocol; up to 31 units) |
| Power Supply | DC 24 V ±10% |
| Current Consumption | ≤100 mA (Inrush: ~8 A / 0.5 msec) |
| Wetted Material | PFA |
| Cable Length | Standard: 3 m (PVC shielded); Option: 3 m (ETFE shielded) |
| Protection | IP X7 equivalent |
| Dimensions (A×B×D) | 225 × 225 × 124.5 mm |
